MP系列磁力泵
MPN 磁力
产品描述

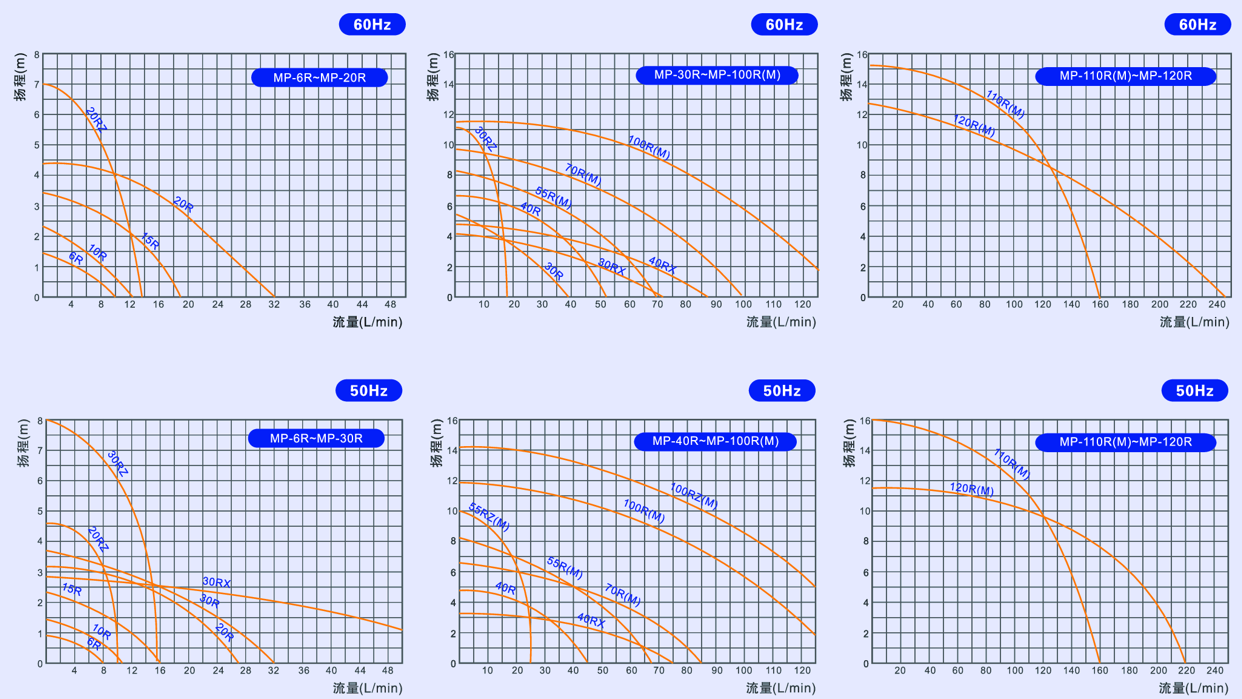

性能曲线
安装尺寸

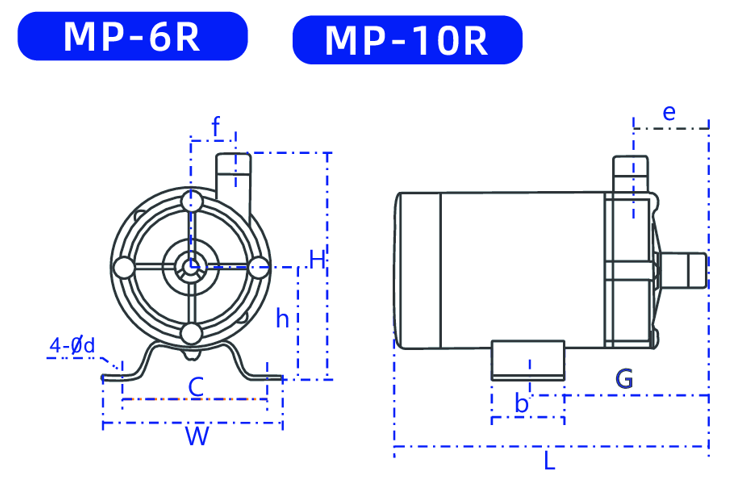

| 型号 | W | H | L | a | b | c | h | e | f | G | d |
| MP-6R | 74 | 93 | 129 | / | 30 | 60 | 36 | 31 | 17 | 74 | 6 |
| MP-10R | 74 | 93 | 129 | / | 30 | 60 | 36 | 31 | 17 | 74 | 6 |

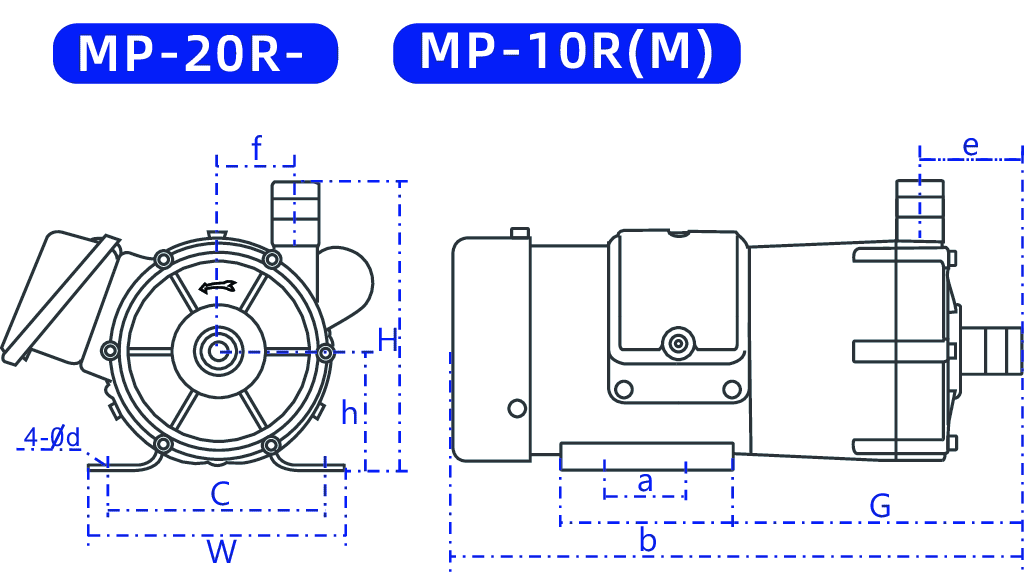

| 型号 | W | H | L | a | b | c | d | e | f | G | d |
| MP-20RZ(M) | 106 | 125 | 226.5 | 44 | 60 | 90 | 55 | 40 | 38.5 | 98 | 8 |
| MP-30RZ(M) | 120 | 130 | 250.5 | 40 | 64 | 100 | 60 | 40 | 38.5 | 134.5 | 8 |

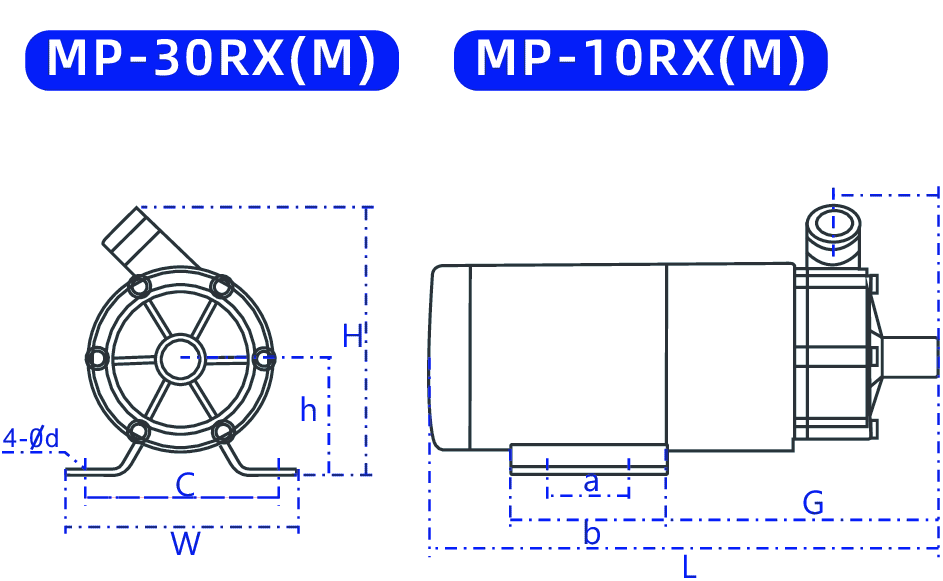

| 型号 | W | H | L | a | b | c | h | e | G | d |
| MP-20RX(M) | 120 | 138 | 269.5 | 40 | 64 | 100 | 60 | 54 | 145.5 | 8 |
| MP-30RX(M) | 120 | 138 | 269.5 | 40 | 64 | 100 | 60 | 54 | 145.5 | 8 |
| 型号 | W | H | L | a | b | c | h | e | f | G | d |
| MP-55R(M) | 120 | 161 | 275 | 40 | 64 | 100 | 65 | 56.5 | 43 | 166 | 9 |
| MP-70R(M) | 142 | 161 | 267 | 70 | 96 | 100 | 65 | 56.5 | 43 | 129 | 9 |

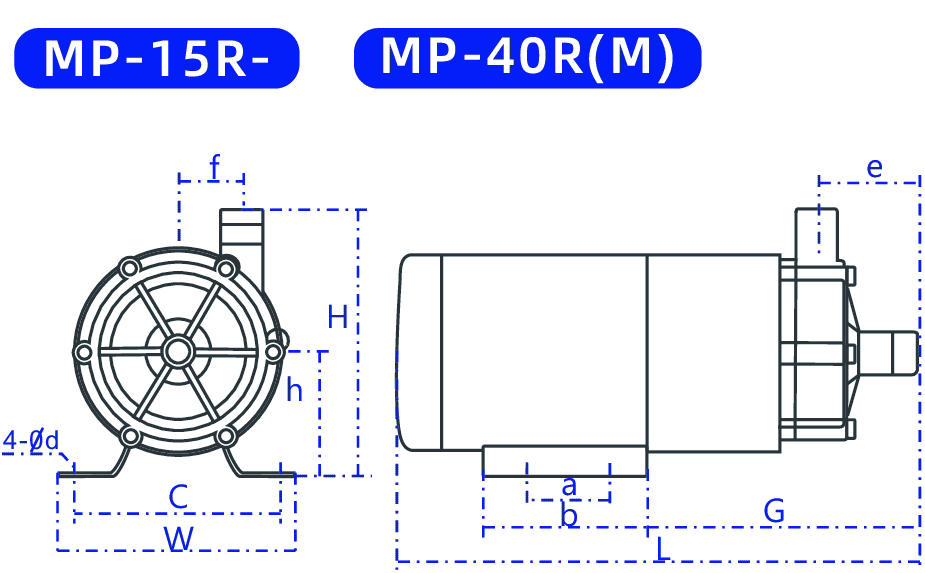

| 型号 | W | H | L | a | b | c | h | e | G | d |
| MP-15R(M) | 82 | 100 | 196 | 49 | 64 | 68 | 45 | 38 23 | 89 | 6 |
| MP-20R(M) | 106 | 116 | 226 | 44 | 60 | 90 | 45 | 38 28.5 | 112 | 7 |
| MP-30R(M) | 120 | 130 | 250 | 40 | 64 | 100 | 60 | 48 31 | 137 | 9 |
| MP-40R(M) | 120 | 130 | 250 | 40 | 64 | 100 | 60 | 48 31 | 137 | 9 |

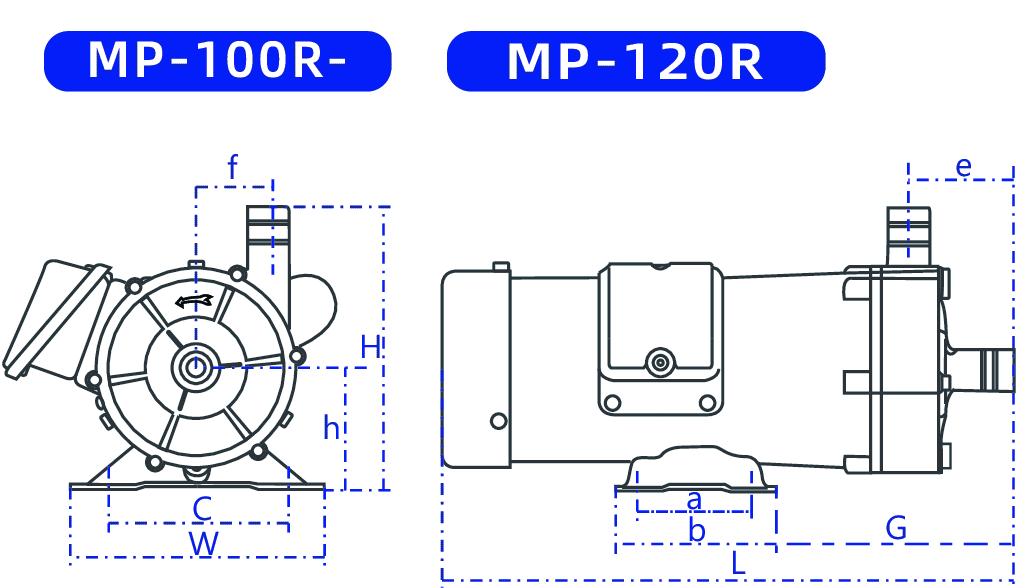

| 型号 | W | H | L | a | b | c | h | e | f | G | d |
| MP-100R(M) | 156 | 174 | 322 | 70 | 100 | 110 | 75 | 65 | 44 | 145. 5 | 9 |
| MP-100R(M) | 135 | 171 | 397 | 90 | 118 | 112 | 70 | 68 | 48 | 207 | 8 |
| MP-110R(M) | 138 | 183 | 384 | 90 | 115 | 113 | 71 | 67.5 | 52.5 | 199 | 8 |
| MP-120R(M) | 140 | 210 | 399 | 98 | 128 | 110 | 95 | 80 | 51 | 129 | 12 |
